SWD EZ Blend w/ Precision Flow Metering Valves Proportioner

3 or 4 Port: 3 Port
Size: 1/2" Valves
Mounting Plate: No Mounting Plate
Sale price$370.00

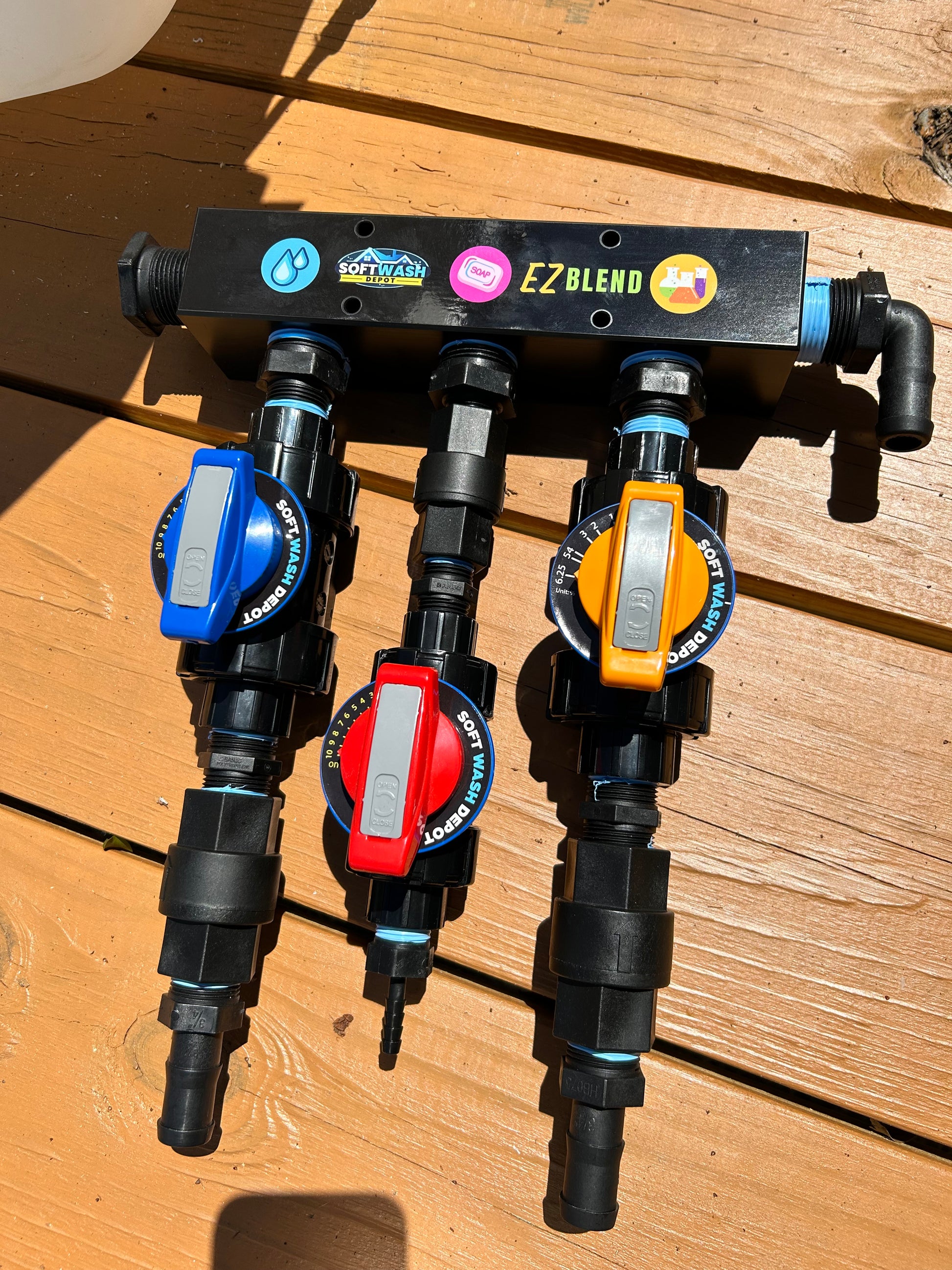

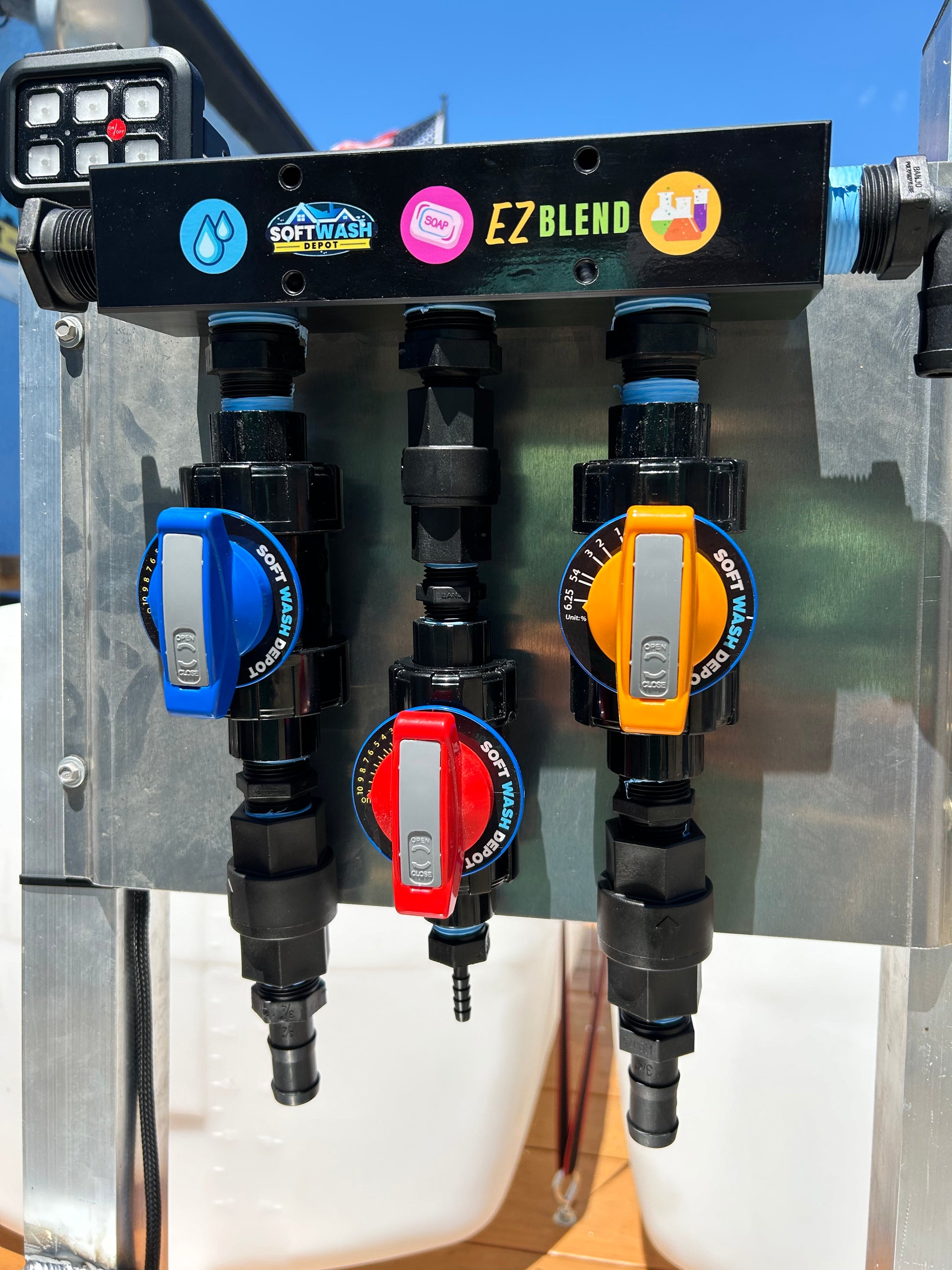

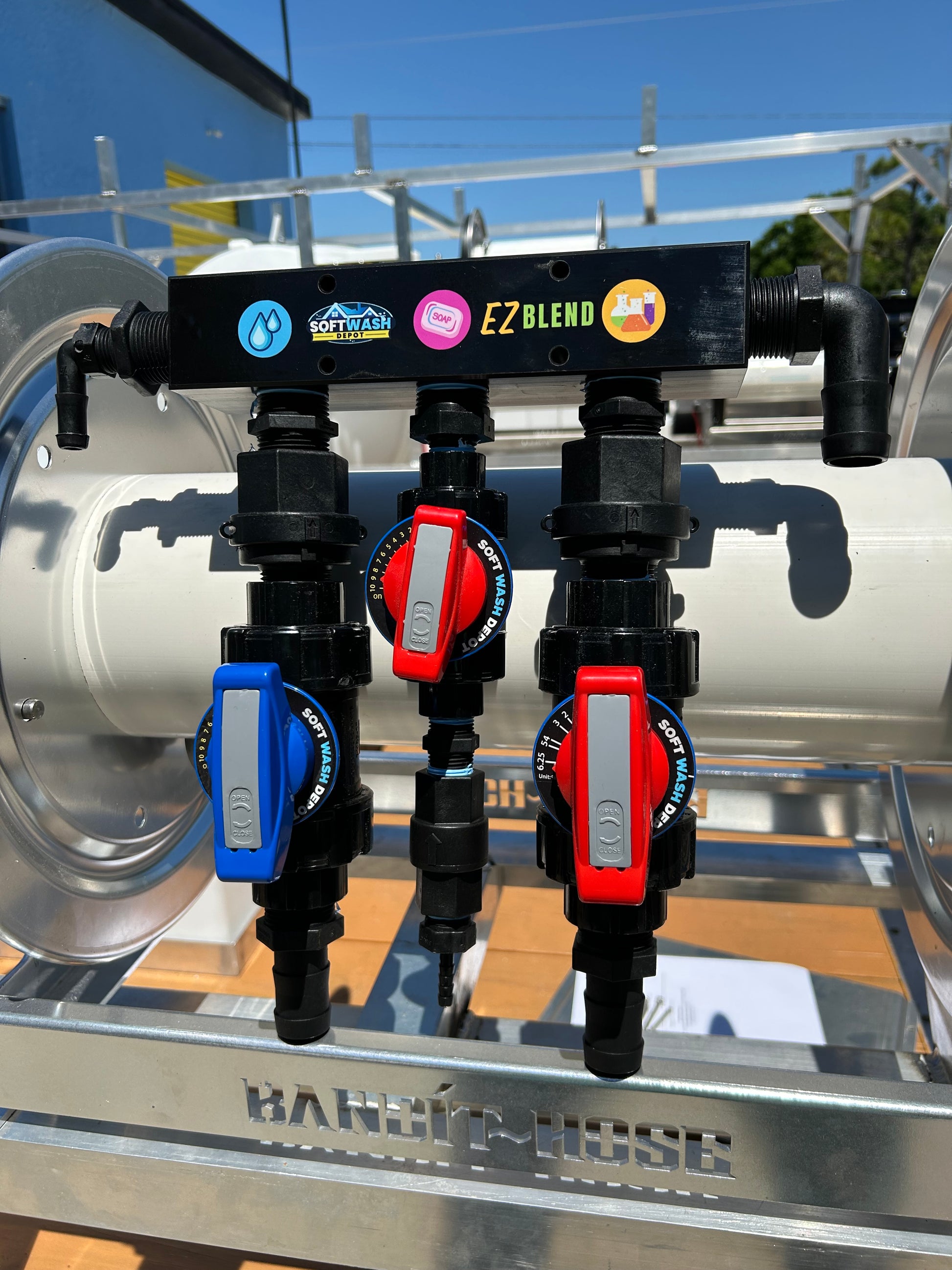

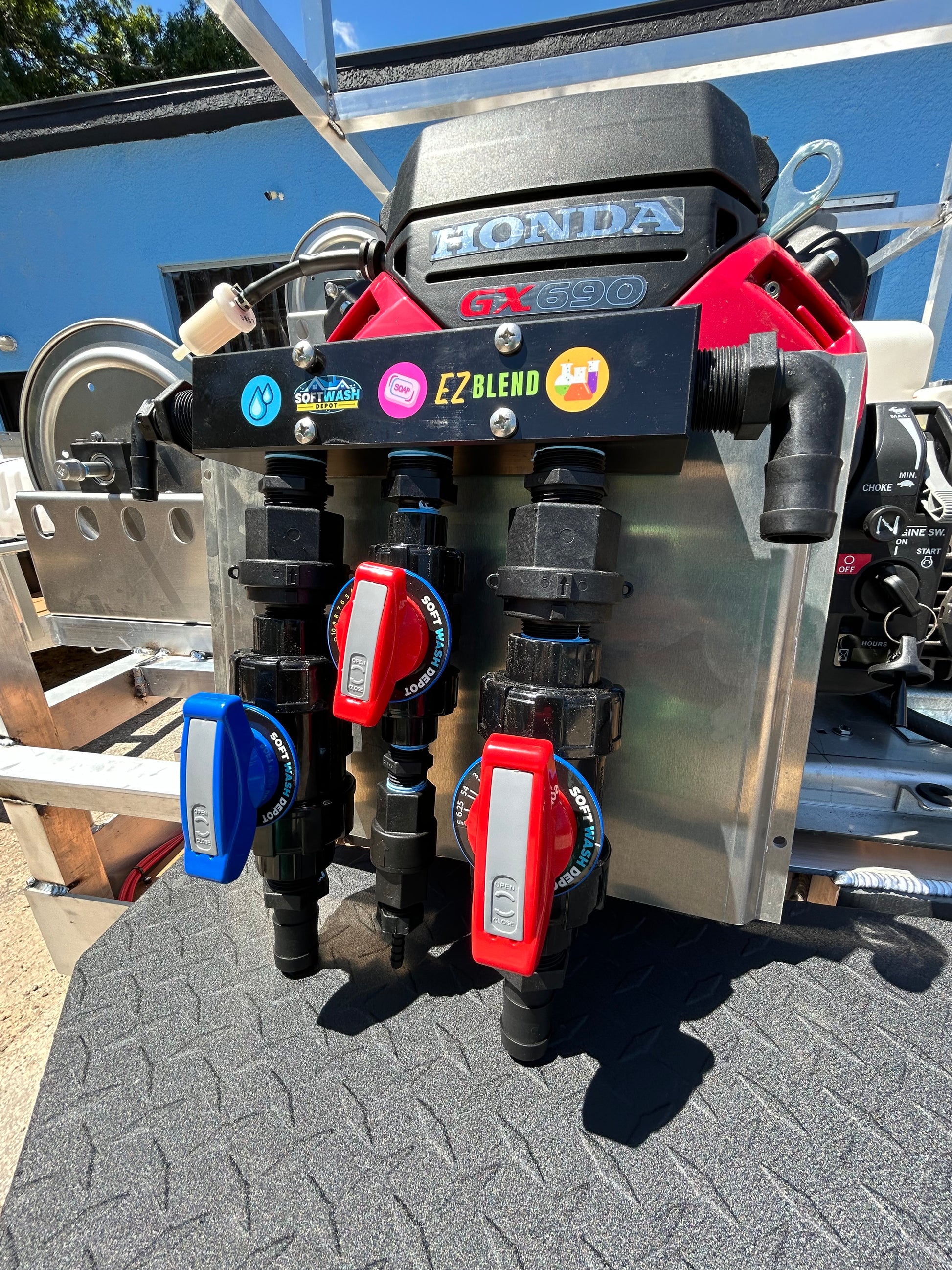

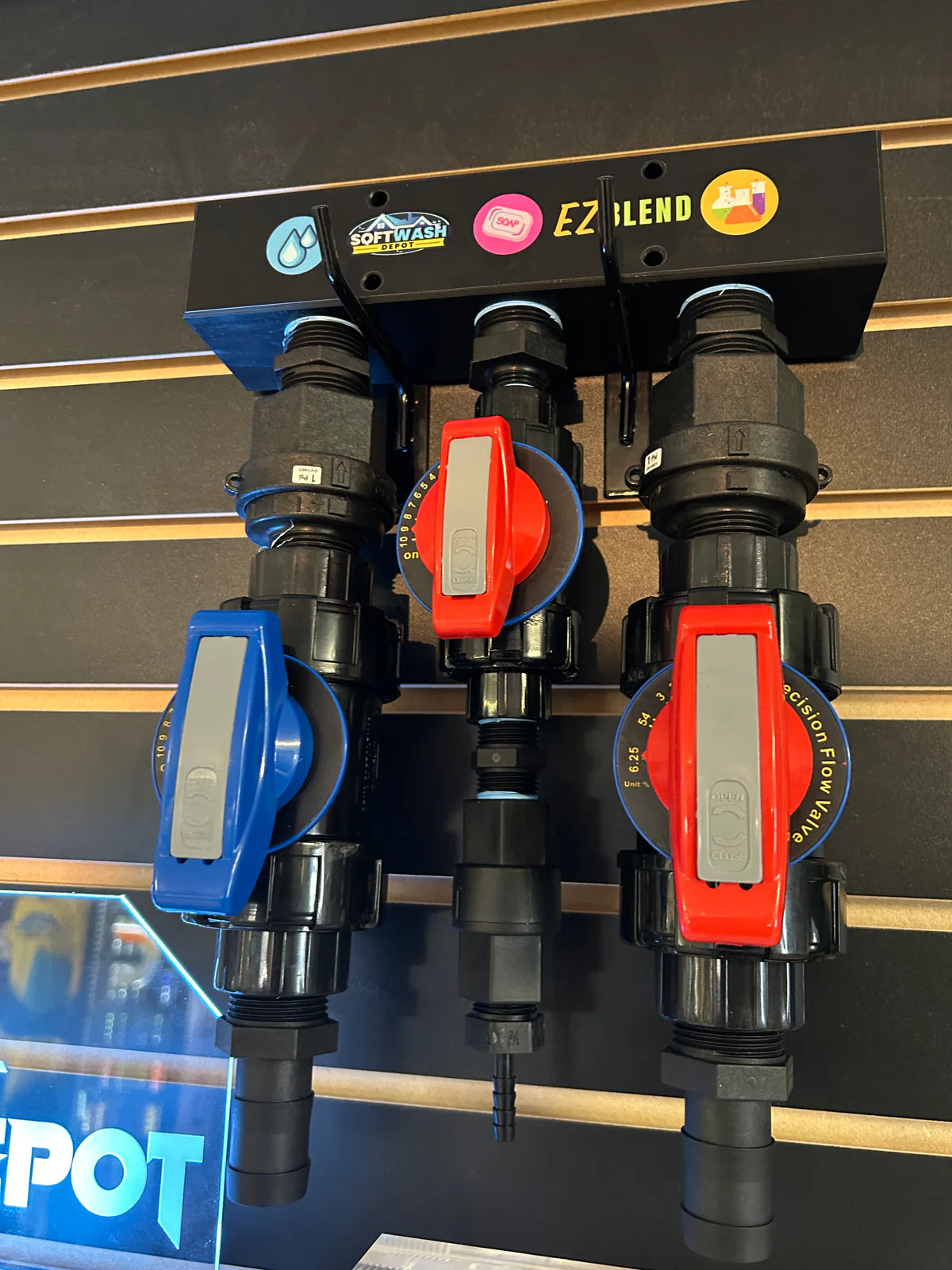

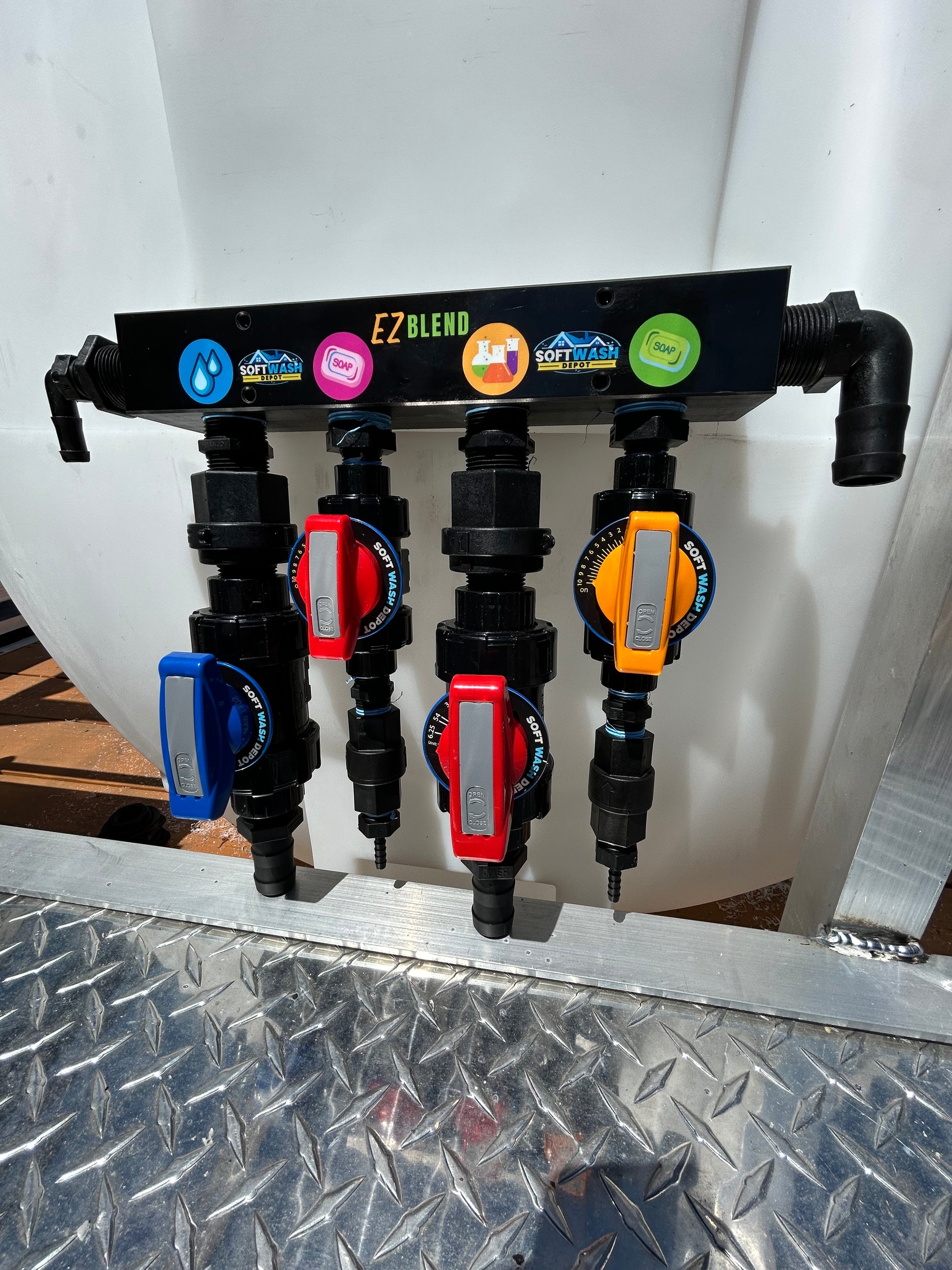

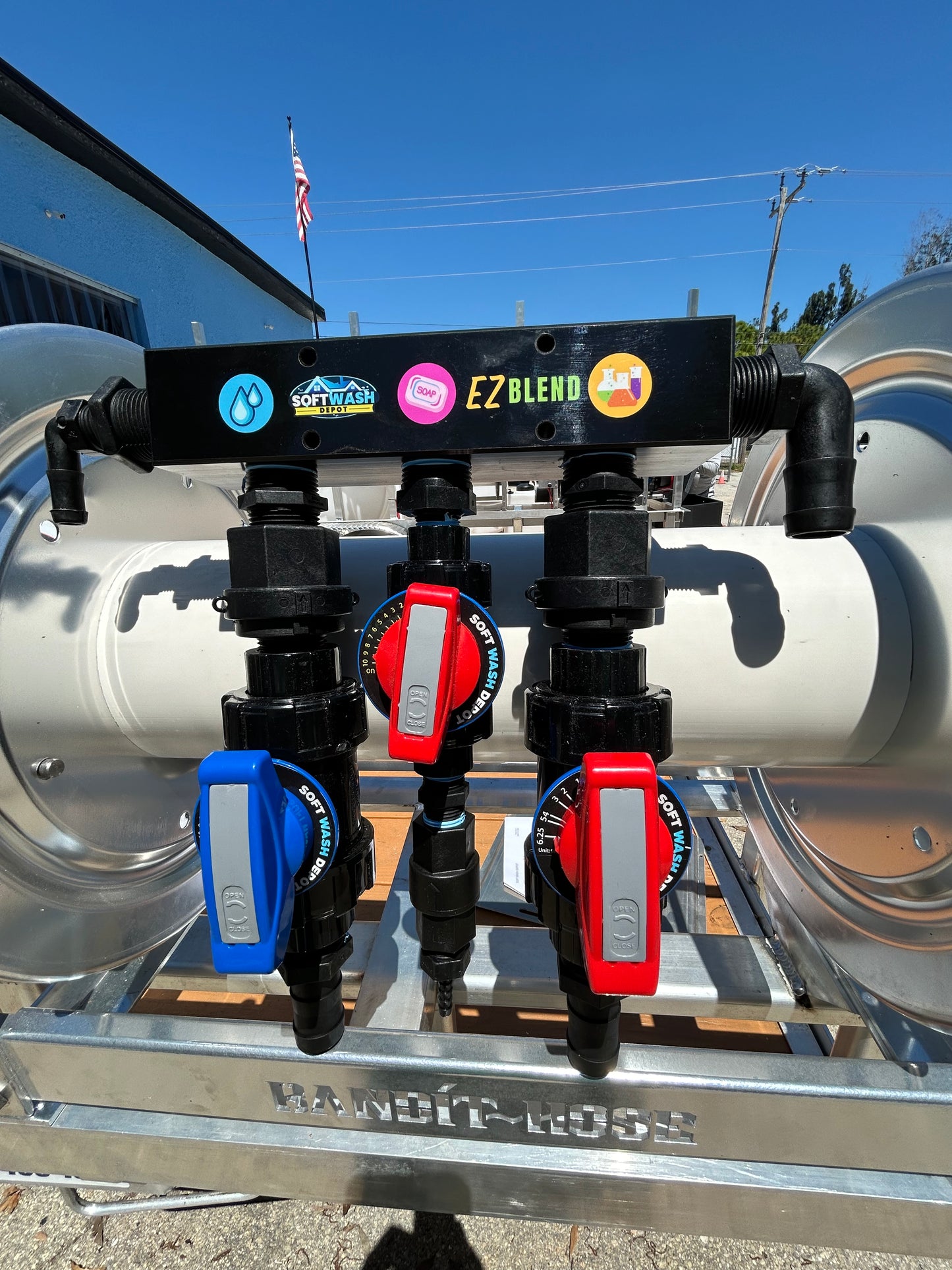

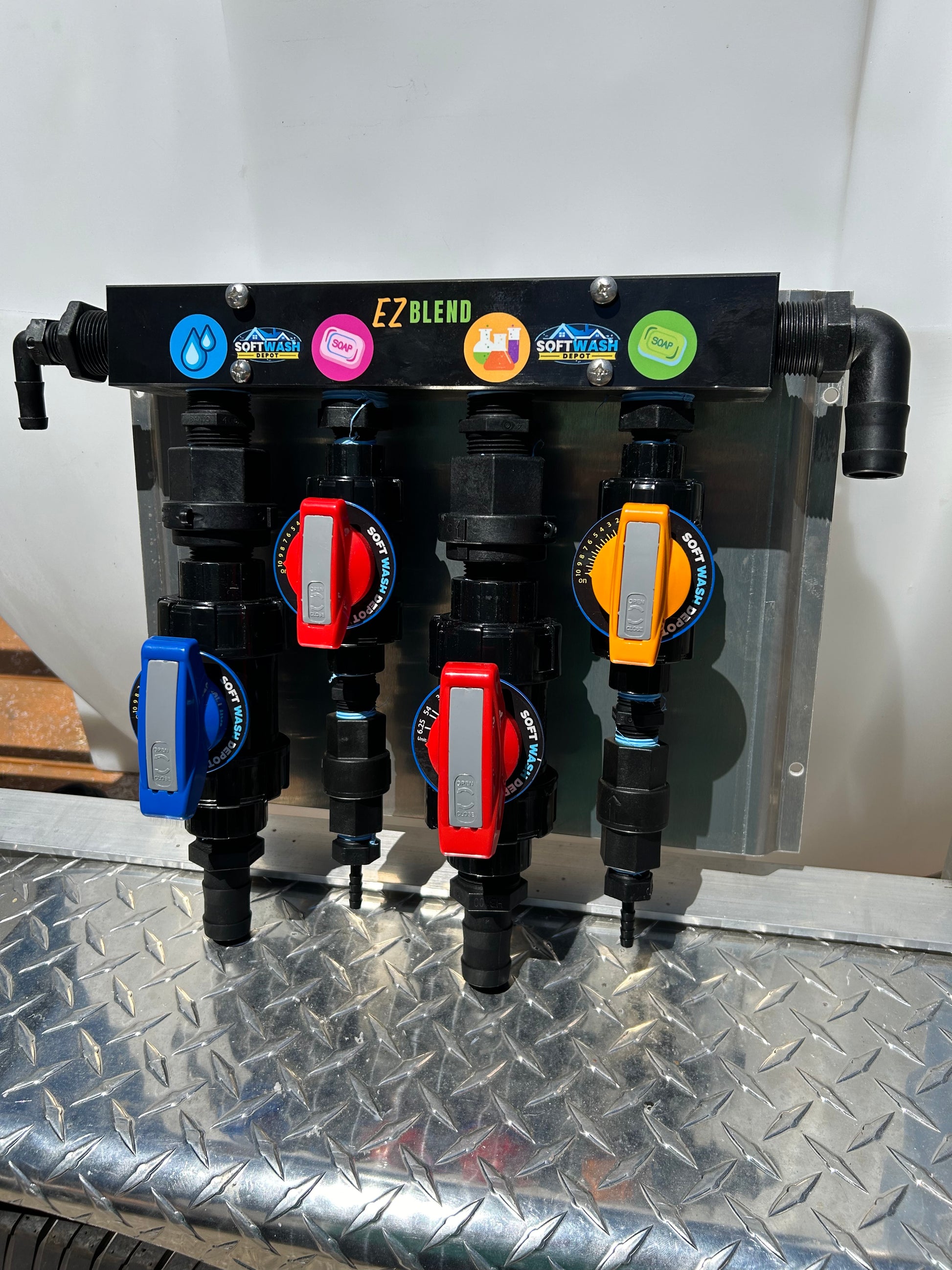

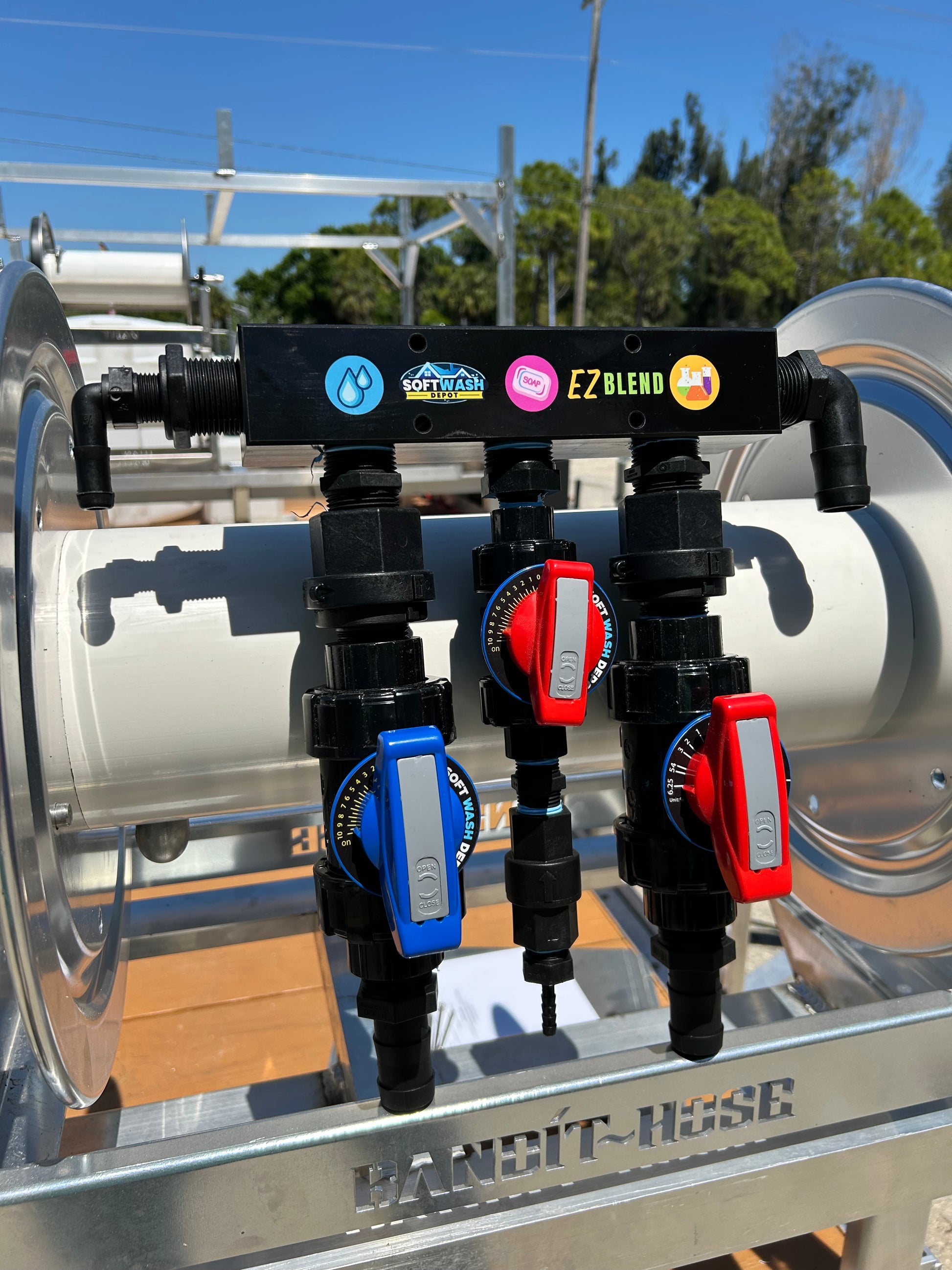

The SWD EZ Blend Precision Flow Proportioner is a professional soft washing mixing manifold. It uses a precision high flow valve to ensure accuracy when mixing soft wash. This innovative system ensures that the correct amount of cleaning solution is used every time for consistently superior results. Choose between 3 valve & 4 valve proportioner offered in 1/2", 3/4" & 1" soft washing metering valves.

Product Description

Soft Wash Depot's precision Flow Metering Valves are specifically designed & labeled for soft washing industry. 3/4” & 1” valves are accurately labeled 0-6.25% for 12.5% Sodium Hypochlorite Solution. 1/2” valves are labeled 0-10 for surfactants, degreasers/ other solutions. Perfect for soft washing mixing proportioners.

Our Soft Wash Depot EZ Blend Manifold are made from polypropylene with 1" NPT holes & 4 1/4" mounting holes.

PTFE Seals are ideal for Sodium Hypochlorite, Sodium Hydroxide, Hydrochloric acid & many other commonly used chemicals in the soft washing industry.

The handle of the valve is secured by a screw making it less likely for the handle to detach from the valve.

The ball is cut at 30° for high flow performance making them ideal for high GPM units.

 Our Recommendations:

1/2″ Valves: Surfactants, Degreasers, Acids.

3/4” Valves: 12v. Pumps (5.5GPM, 7GPM), Air Diaphragm Pumps, Booster Pumps (7GPM and Under).

1” Valves: Gas Systems (AR30, AR45, AR60, Comet P36, Comet P40), Booster Pumps (8GPM+).

 Product Details:

  • Body Material: UPVC
  • Pipe Size: 1/2, 3/4, 1”
  • Connection Type: FNPT Socket Thread
  • Max. Pressure: 150 psi
  • Ball Material: UPVC
  • Seal Material: PTFE
  • Body Seal Material: Viton
