(3 Port & 4 Port) - Clear Acrylic Soft Washing Mixing Proportioner with Precision Flow Valves

*Processing may take up to 1-3 weeks.*

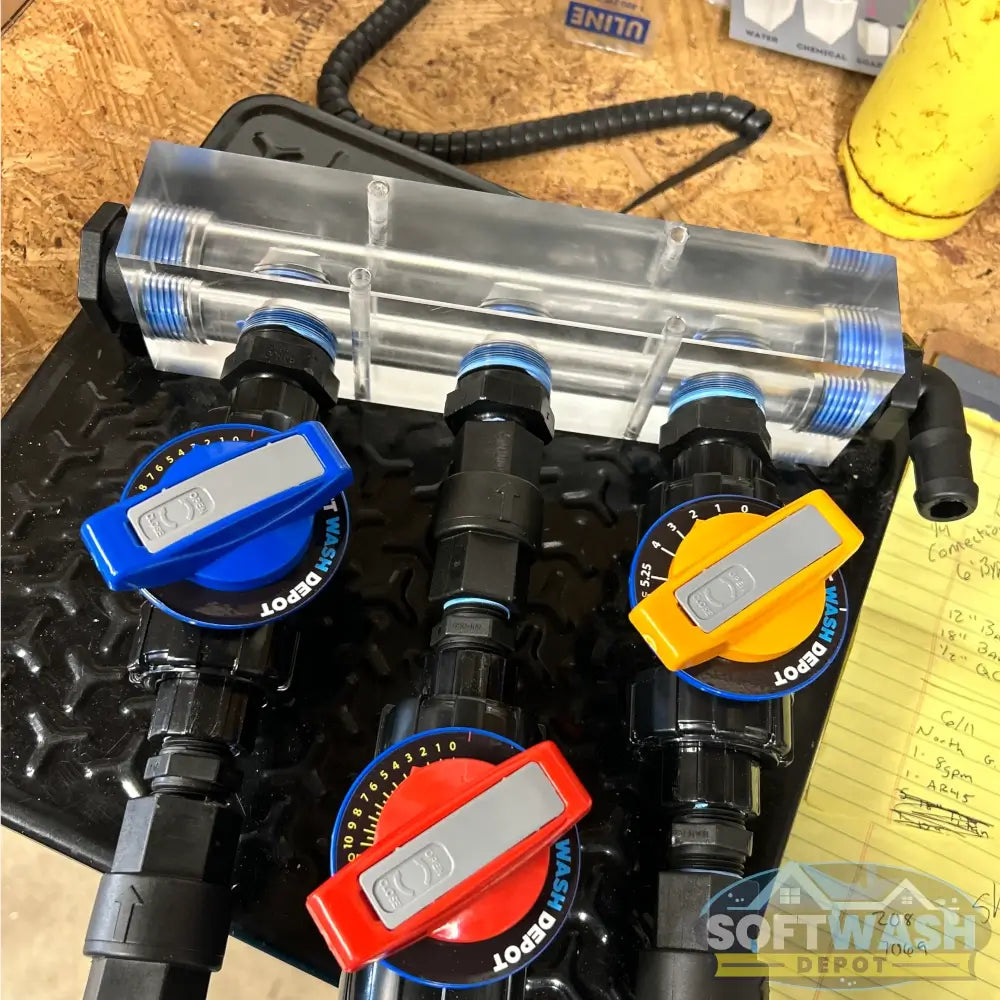

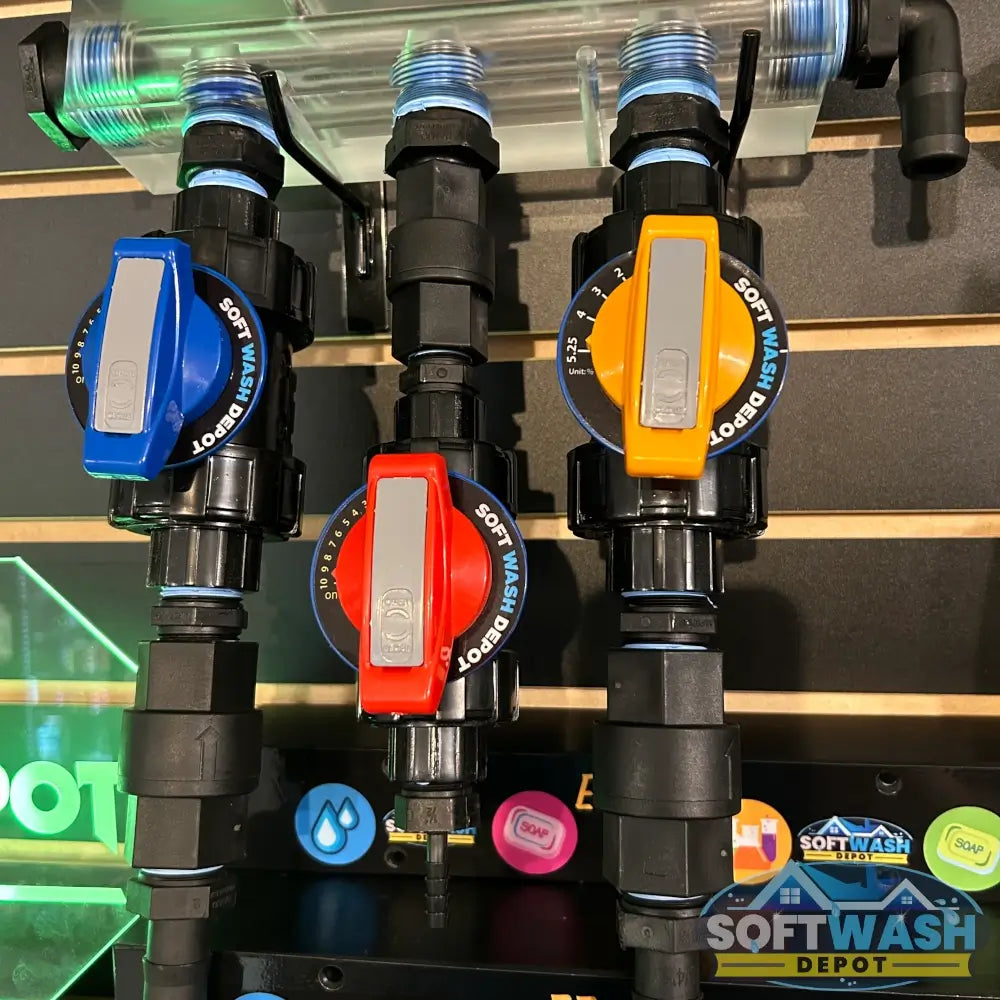

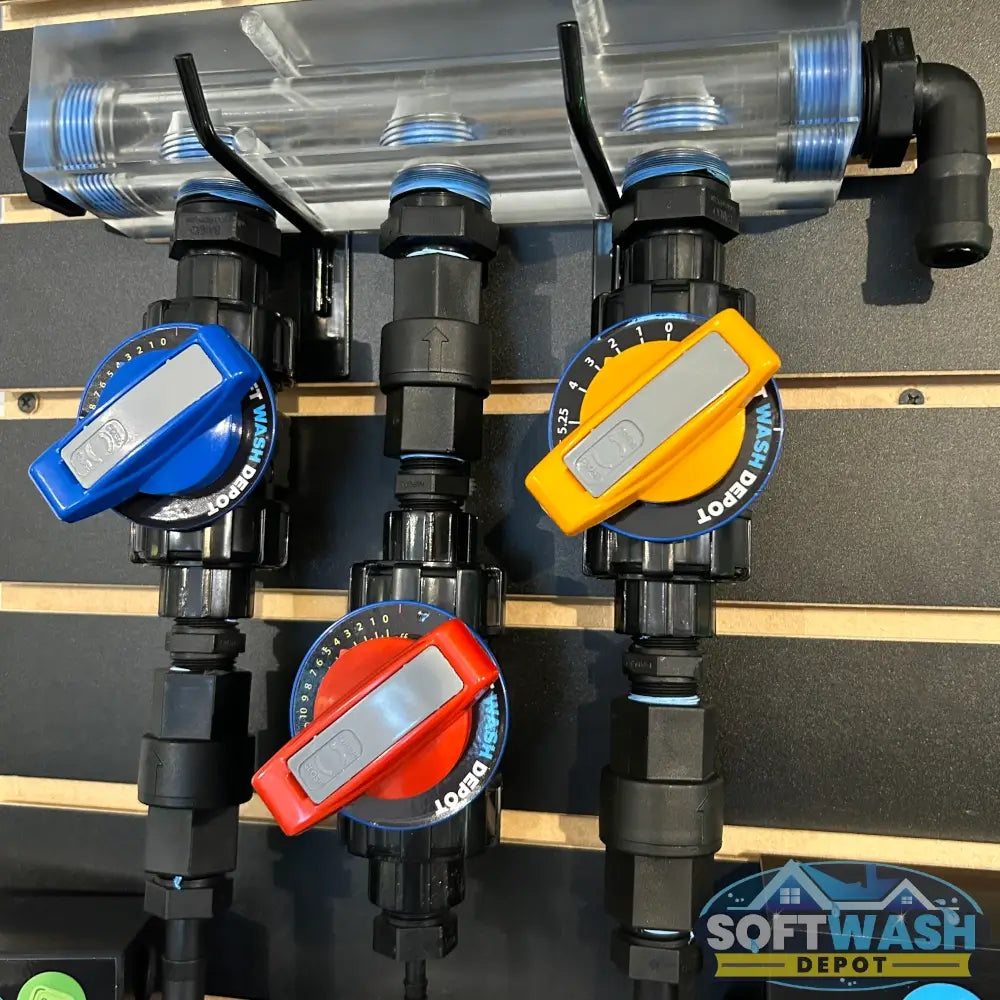

The SWD EZ Blend Precision Flow Proportioner is a professional soft washing clear mixing manifold made in the USA.  It uses a precision high flow valve to ensure accuracy when mixing soft wash. This innovative system ensures that the correct amount of cleaning solution is used every time for consistently superior results. Choose between 1/2", 3/4" & 1" soft washing metering valves.

Soft Wash Depot's precision Flow Metering Valves are specifically designed & labeled for soft washing industry. 3/4” & 1” valves are accurately labeled 0-6.25% for 12.5% Sodium Hypochlorite Solution. 1/2” valves are labeled 0-10 for surfactants, degreasers/ other solutions. Perfect for soft washing mixing proportioners.

Our Soft Wash Depot EZ Blend Clear Manifolds are made from clear acrylic made in the USA 🇺🇸 with 1" NPT holes & 4 1/4" mounting holes.

PTFE Seals are ideal for Sodium Hypochlorite, Sodium Hydroxide, Hydrochloric acid & many other commonly used chemicals in the soft washing industry.

The handle of the valve is secured by a screw making it less likely for the handle to detach from the valve.

The ball is cut at 30° for high flow performance making them ideal for high GPM units.

Our Recommendations

1/2″ Valves: 12V Pumps (3-7gpm)

3/4” Valves: 12V Pumps (7gpm & Siamese) , Air Diaphragm Pumps, Booster Pumps (7GPM and Under).

1” Valves: Gas Systems (AR30, AR45, AR60, Comet P36, Comet P40), Booster Pumps (8GPM+).

Product Details

• Body Material: UPVC
• Pipe Size: 1/2, 3/4, 1”
• Connection Type: FNPT Socket Thread
• Max. Pressure: 150 psi
• Ball Material: UPVC
• Seal Material: PTFE
• Body Seal Material: Viton

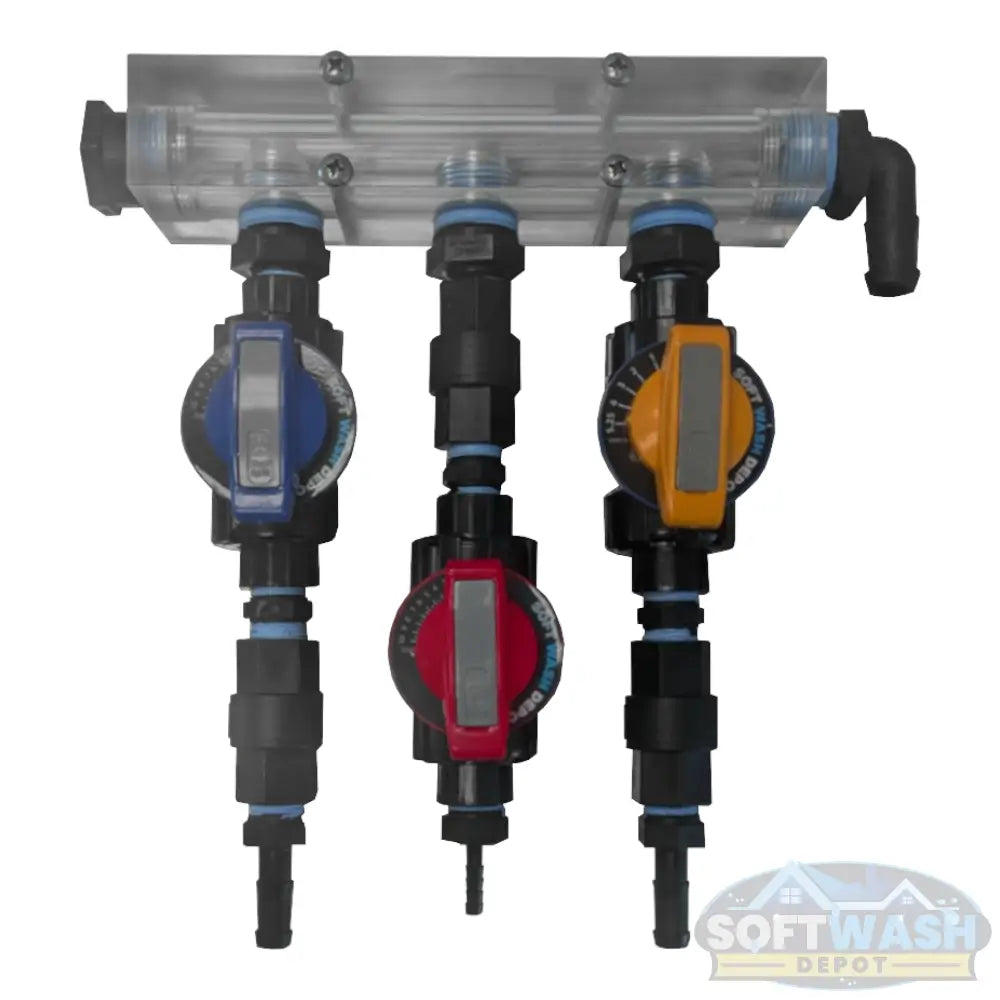

• 3 port 11"w x 15"L

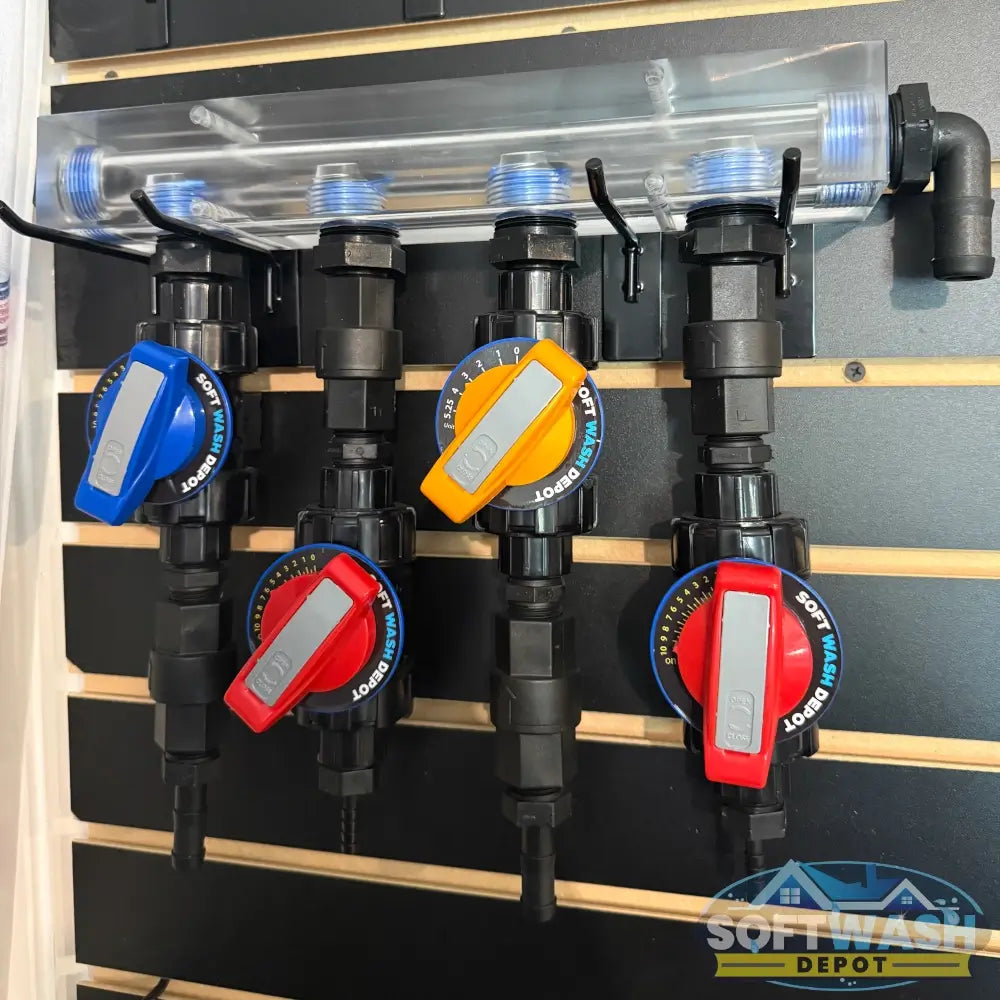

• 4 port 14"w x 15"L

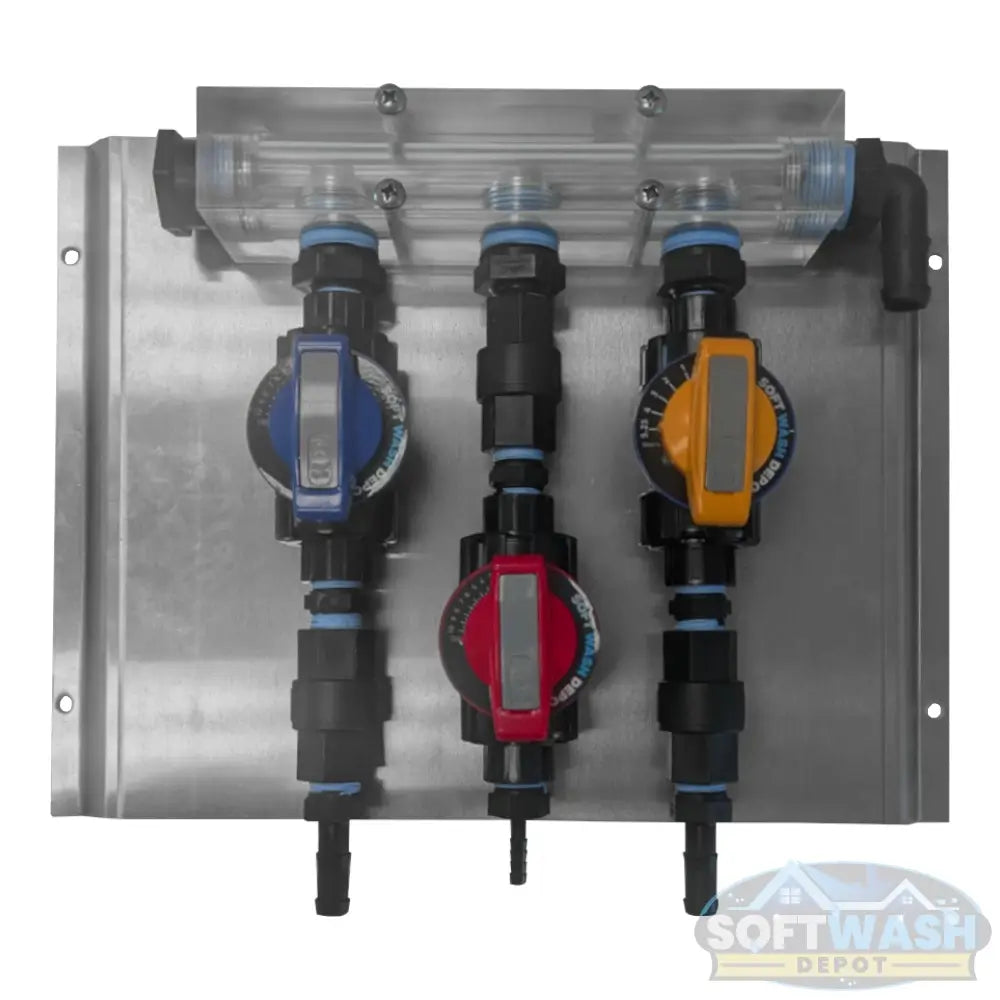

• Aluminum mounting plate 16"w x 12"h w/ 4 self tapping screws & x 1/4" x 20 SS hardware.

Installation

• DO NOT OVERTIGHTEN
• We use 1-2 wraps of blue tape. *Do Not Use Sealant*

• Take your time.

Warranty

Yes we will warranty manufacture defects. Chips, cracks on arrival, etc. We can not warranty when you put it together yourself. Too tight, too much tape, tru blue or something that may cause cracks. If you do have questions PLEASE call us to help you install them. 239-800-9274. Thank you.
